PRJ-E01
Electrical
Panels
PLC, servo and motor control panels
A full panel line-up for a production line: MCC sections, PLC panel, servo drive section and operator doors.
- System
- Panel design, fabrication, power and control wiring, PLC and servo integration, factory testing
- PLC / HMI
- Fuji SPF series PLC with Fuji MONITOUCH HMI; Siemens S7-1200 and S7-1500 PLC with Siemens KTP and MTP HMI panels
PRJ-E02
Electrical
PCC
Power control centre with ACB incomer
Incomer, metering and outgoing feeders for plant power distribution.
- System
- ACB incomer, MCCB feeders, metering and indication
PRJ-A01
Ceiling fans
SPM

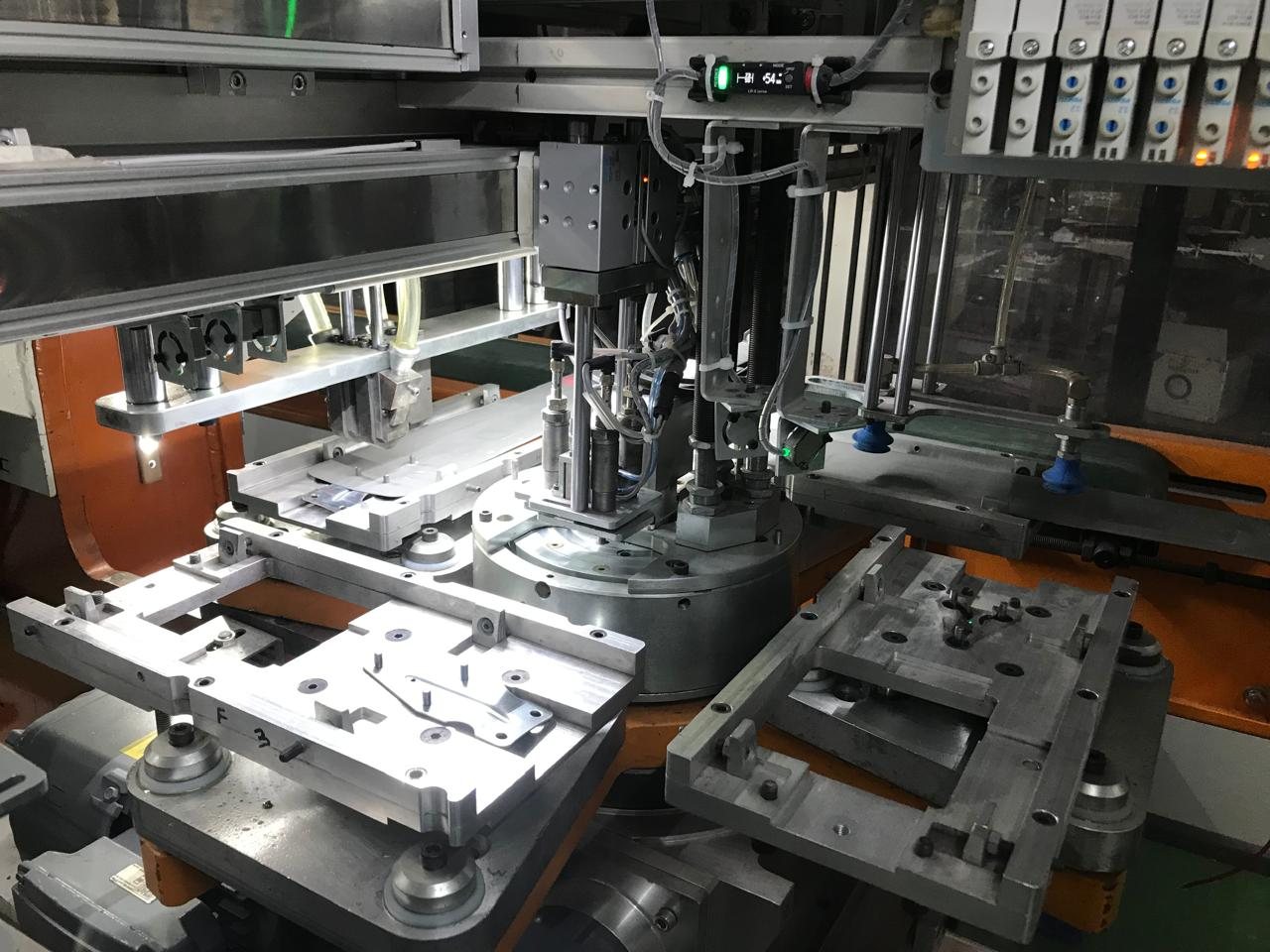

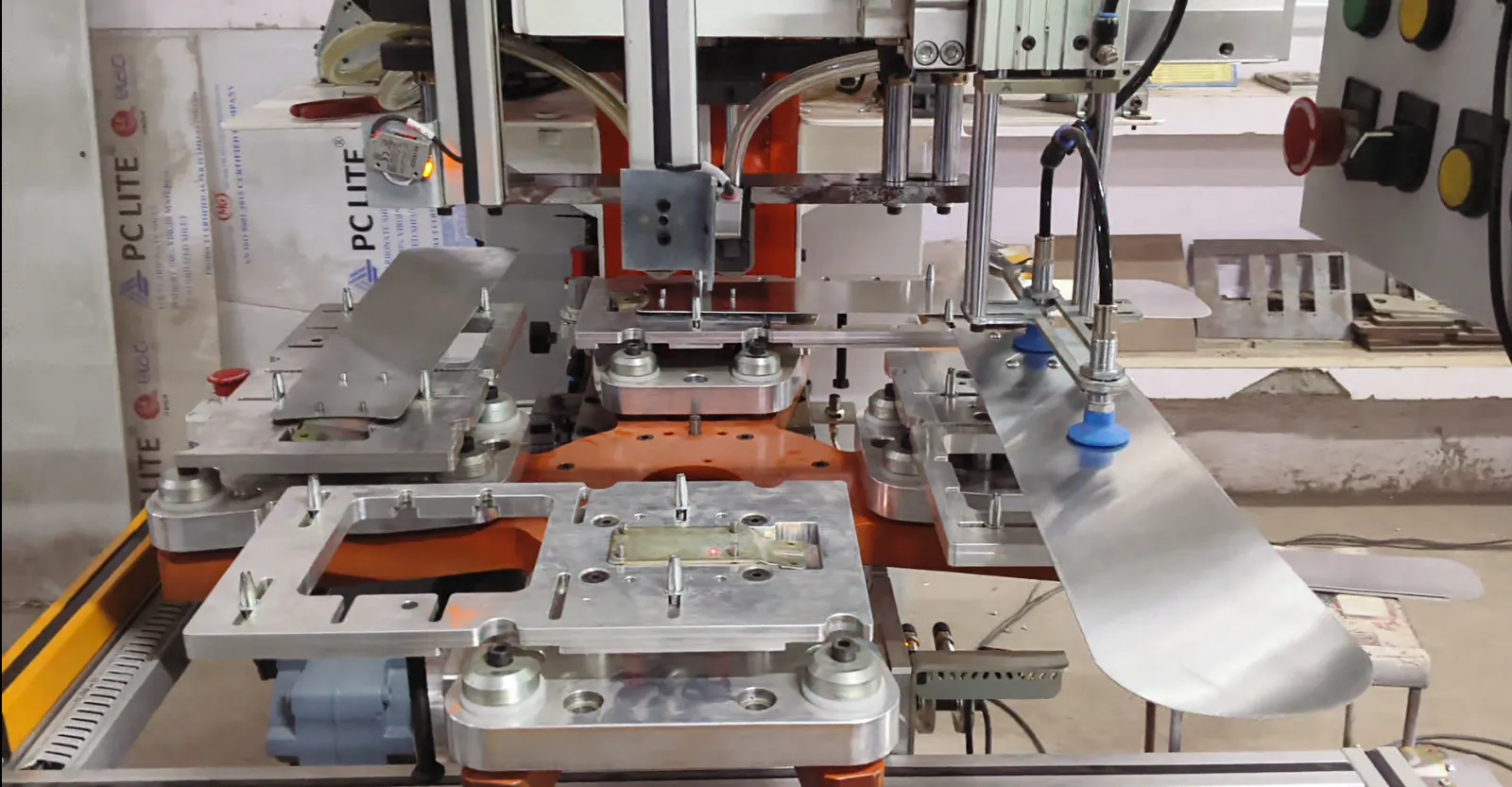

Blade-to-rotor riveting taken off the operator, with automatic rivet feeding and a PLC-controlled press stroke.
- System
- 8-ton hydro-pneumatic press, 4-station rotary indexer, servo pick-and-place, rivet and washer feeding, PLC with HMI
- Result
- Six machines delivered to ceiling fan manufacturers. Cycle time 2.5 s.
PRJ-A02
Switchgear
SPM
Bimetallic riveting machine
Silver contact tips riveted without deforming the contact face.
- System
- Mechanical, tooling, PLC
PRJ-A03
Retrofit
CNC controller retrofit
Obsolete control replaced on a turning or milling machine with sound mechanics.
- System
- Controller, servo drives, panel, commissioning
PRJ-A04
Ceiling fans
Testing
Air delivery test system
A complete IS 374 air delivery test run at the push of one button, with the report generated and filed automatically.
- System
- PLC and SCADA, automatic diaphragm changeover, pneumatic fan lift, laser alignment, energy meter, data logging
- Result
- Four systems delivered to ceiling fan manufacturers.
PRJ-P01
Fasteners
Tooling
Thread rolling die manufacturing machine
Purpose-built machine for producing thread rolling dies in-house.
- System
- Mechanical, CNC
PRJ-P02
Precision
Jigs, fixtures and gauges

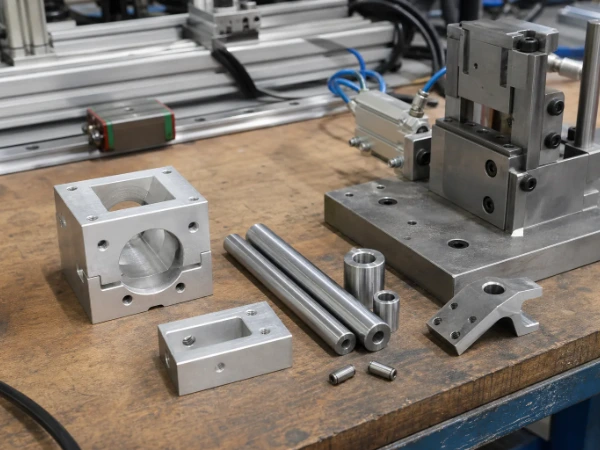

Holding fixtures and inspection gauges machined on the VMC and surface grinder.
- System
- VMC, turning, surface grinding
- Result
- Case to follow
